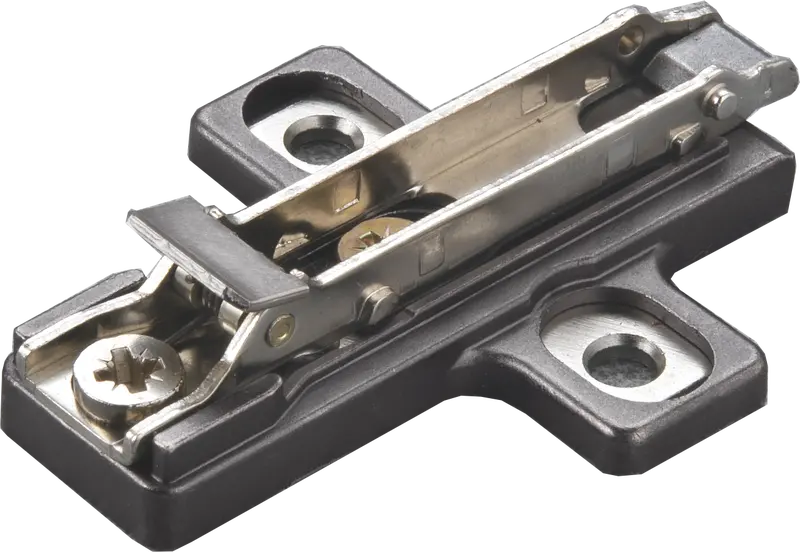

Salice Diecast Standard Clip-On Mounting Plates (Bar3R Series)

Description

The ‘Rolls Royce’ of mounting plates they offer a good range of integral cam-action vertical adjustment and simple snap-on fitting of the hinge arm.

These plates are suitable for hinge series 200, 400, 700, F and M.
Requires 3.5mm / 6g countersunk woodscrews (not supplied)
Available in five effective heights:

• BAR3R09 – 0mm – Typically used for FULL and 1/4 Overlay applications.
• BAR3R39 – 3mm – Typically used for FULL, 1/4 and 1/2 Overlay applications.
• BAR3R69 – 6mm – Typically used for INSET door applications.
• BAR3R99 – 9mm
• BAR3RC9 – 12mm

Available in two finishes:

• Nickel
• Titanium (0 & 3mm size only)

Screw holes to be drilled 37mm from edge of cabinet.
