Salice Conecta Wooden Door Hinge – 10–12.5Mm Overlay, Min. 22Mm Door Thickness (Cql3Je)

Description

In the set:

• 2 x Hinges
• 2 x Flange Covers
• Fixing Screws

The Salice Conecta Hinge for Wooden Doors from 22mm thick is the perfect combination of innovation and elegance. Its concealed design provides a sleek and refined finish while maintaining precise fluid movement. It is perfect for heavier and larger doors due to its high build quality, and provides customisability to suit any unique aesthetic. This hinge ensures an ease of use combined with unparalleled functionality.

Hinge body available in two finishes:

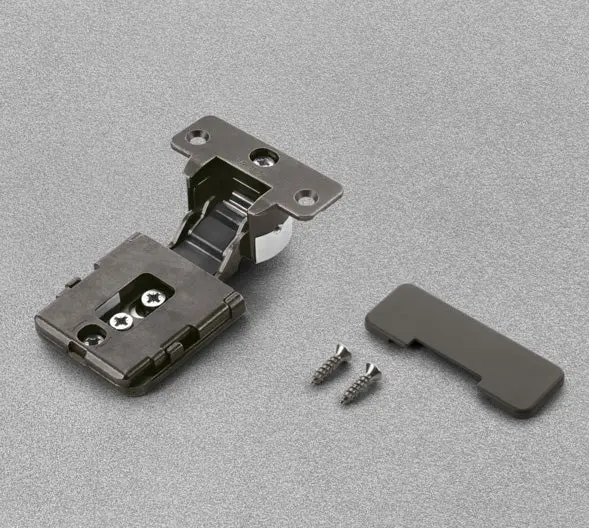

• Titanium (CQL3JE6XXV) – supplied with titanium finish covers

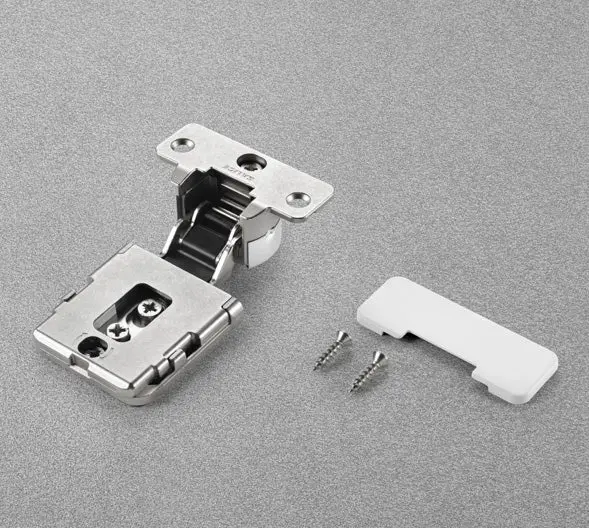

• Nickel (CQL3JE9XXV) – supplied with white finish covers

Technical Features

• For wooden doors from 22mm thick
• Rapid fixing of the door to the cabinet side
• 19 mm deep metal cup
• Drilling distance fixed at 10 mm from the edge of the door to the centre of the hole
• Diameter 35 mm
• 94° opening
• Sideways adjustment -1 +2 mm
• Height adjustment -2,5 +2.5 mm
• Depth adjustment 0 +3 mm
• Concealed CQL3JE hinge with recessed insertion in the door and in the side.
  – Door overlay on the side 14mm with holder DQG5
  – Door overlay on the side 16.5mm with holder DQG3
